Aquamor  ·  UF-4420-0000
UF Systems

UF-4420-0000

Aquamor

Filtration Claims

Cyst Reduction

Model UF-4420-0000
Part Number 108036
Brand Aquamor
Segment UF Systems
Flow Rate 30 GPM
Overall Width 14.48 in
Overall Height 60.52 in
Weight 65 lbs
Operating Temperature 35-100 F
Included Fittings
  • Primary connections: 1-inch NPT fittings with gauges.
  • Two 3/4-inch NPT fittings with gauge port. Part No. 306037.
  • One serial flow connector. Part No. 306040, which carries:
    • One plug fitting. Part No. 306035.
    • One yellow U-clip. Part No. 501219.
    • One check valve. Part No. 502805.
  • No flow restrictor required.
Certification
NSF/ANSI 53

Specifications subject to change. Data as of June 2026.
Full engineering specifications (capacity, micron rating, dimensions) available on request.

For multi-site operators

Running foodservice equipment? See how Aquamor keeps it from going down.

See the Foodservice Solution Size Your System
More in the Aquamor UF Systems range
Ready to specify this filter?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within one business day.
Contact Customer Service
Aquamor UF-4420-0000 40-inch double-membrane ultrafiltration system

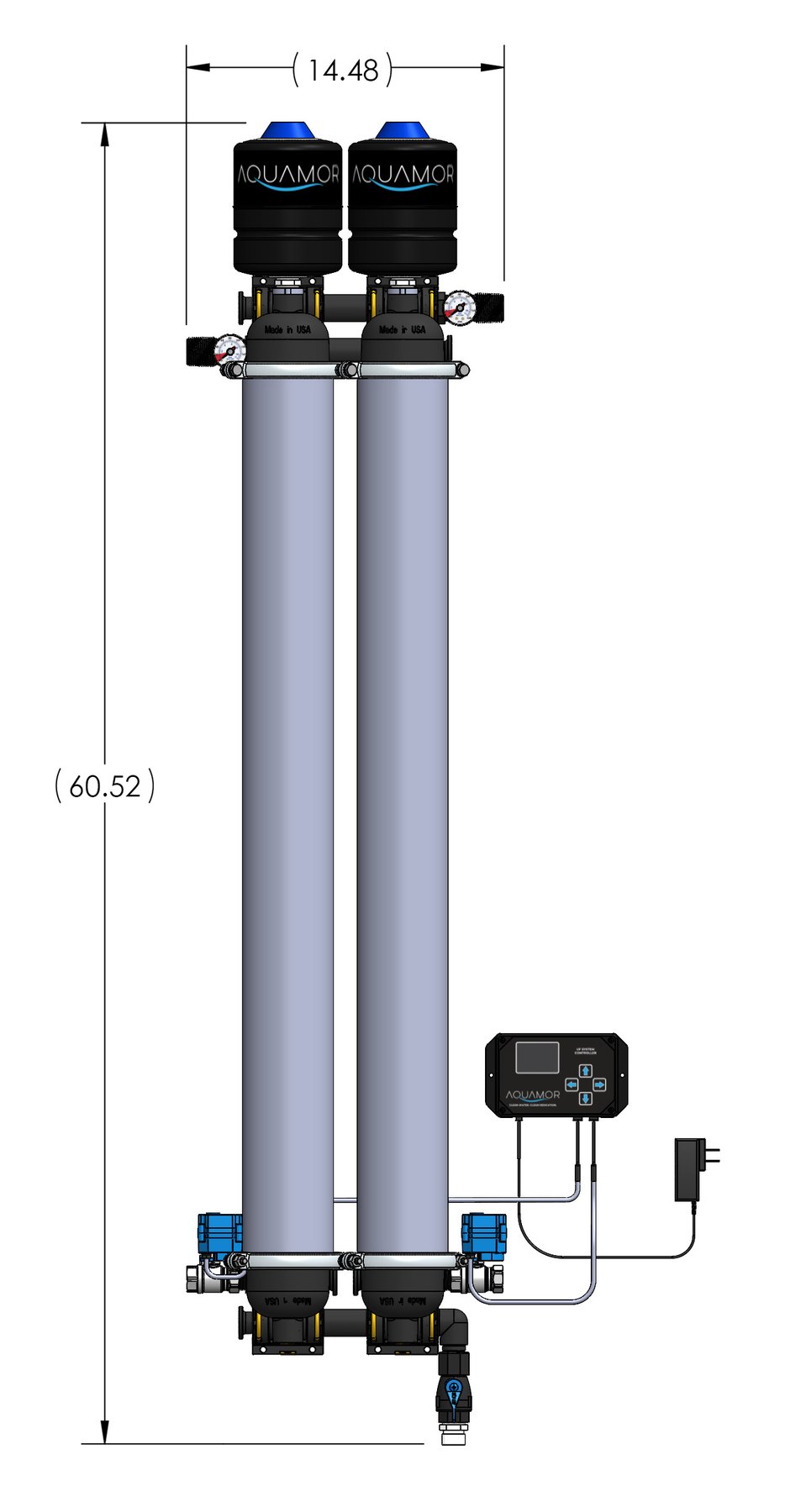

Aquamor UF-4420 dimensioned drawing, 14.48 inch width by 60.52 inch height
Dimensioned drawing, 14.48 in width by 60.52 in height
