Aquamor BGX-C  ·  Triple

Application

BGX Triple Manifold, 1 in NPT, Rinse Valve and Pressure Gauge

The 105224 is a three-cartridge parallel BGX manifold on 1 inch NPT, a larger connection than the 3/4 inch triple 105214, with rinse valve and pressure gauge standard. It carries the same three-way flow split as the 105214 at a size built for higher combined flow.

Three cartridges in parallel, higher combined flow

BGX-C Triple flow pathWater enters a single inlet line, then divides at a distribution header into 3 equal branches, one for each of 3 filter cartridges arranged in parallel. Each cartridge filters only its own share of the flow. After the cartridges, the 3 branches rejoin at a collection header into a single outlet line.PARALLEL BANK OF 3FLOW SPLITS ACROSS EVERY CARTRIDGEINLETABCOUTLET

Scroll the diagram sideways to see the full flow path.

A triple manifold splits incoming water across three cartridges running side by side and brings the three streams back together on the outlet. Each cartridge only carries a third of the total flow, so the bank as a whole supports more combined volume and more combined capacity before a changeout than a single cartridge could. The filtration each gallon receives does not change; what changes is how much water the manifold can move.

Typical application. Higher-draw equipment lineups or sites where flow demand has outgrown a twin manifold.

Part Number 105224
Series Aquamor BGX-C
Configuration Triple
Flow Arrangement Three cartridges in parallel
Filter Heads 3
Port Size 1 in NPT
Rinse Valve Yes
Pressure Gauge Yes
Mounting Wall mount
More in the Aquamor Manifolds range
Ready to spec this manifold?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within two business days.
Contact Customer Service

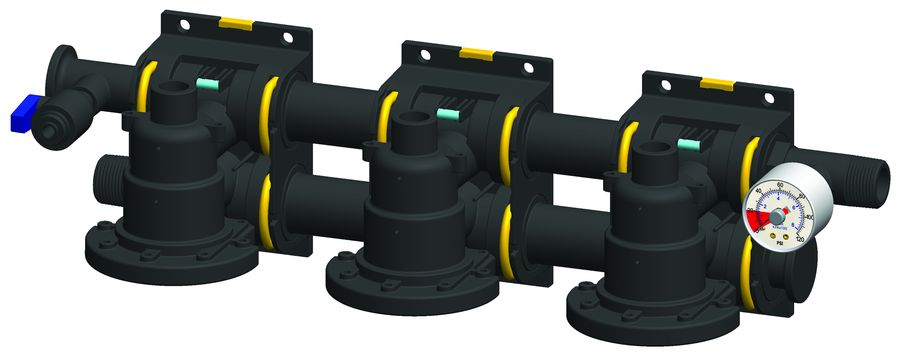

Aquamor BGX-C Triple filter manifold, part number 105224
