Aquamor BGX-C  ·  105222
BGX-C Manifolds

105222

Aquamor BGX-C  ·  Single

Application

BGX Single Manifold, 1 in NPT, Rinse Valve and Pressure Gauge

The 105222 is a single-cartridge BGX manifold on 1 inch NPT, a larger connection than the 3/8 inch single-head builds, with rinse valve and pressure gauge standard. All incoming water passes through the one cartridge, the same flow path as every single-head manifold in this lineup, at a size built for higher-flow single-cartridge installations.

One cartridge, all the water

BGX-C Single flow pathWater enters at the inlet, flows through one filter cartridge, and exits at the outlet. All of the incoming water passes through the single cartridge.SINGLE CARTRIDGEALL FLOW THROUGH ONE STAGEINLETCartridgeOUTLET

Scroll the diagram sideways to see the full flow path.

A single-head manifold routes all incoming water through one cartridge before it leaves the manifold. There is nothing to split and nothing downstream for the water to pass through again: the cartridge installed is doing the entire job. It is the simplest arrangement in this lineup, and the most straightforward to service because there is only one cartridge to track and change.

Typical application. Lower-volume applications, a single piece of equipment, or any spot where one cartridge's flow rate and capacity are enough.

Part Number 105222
Series Aquamor BGX-C
Configuration Single
Flow Arrangement Single stage
Filter Heads 1
Port Size 1 in NPT
Rinse Valve Yes
Pressure Gauge Yes
Mounting Wall mount
More in the Aquamor Manifolds range
Ready to spec this manifold?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within two business days.
Contact Customer Service

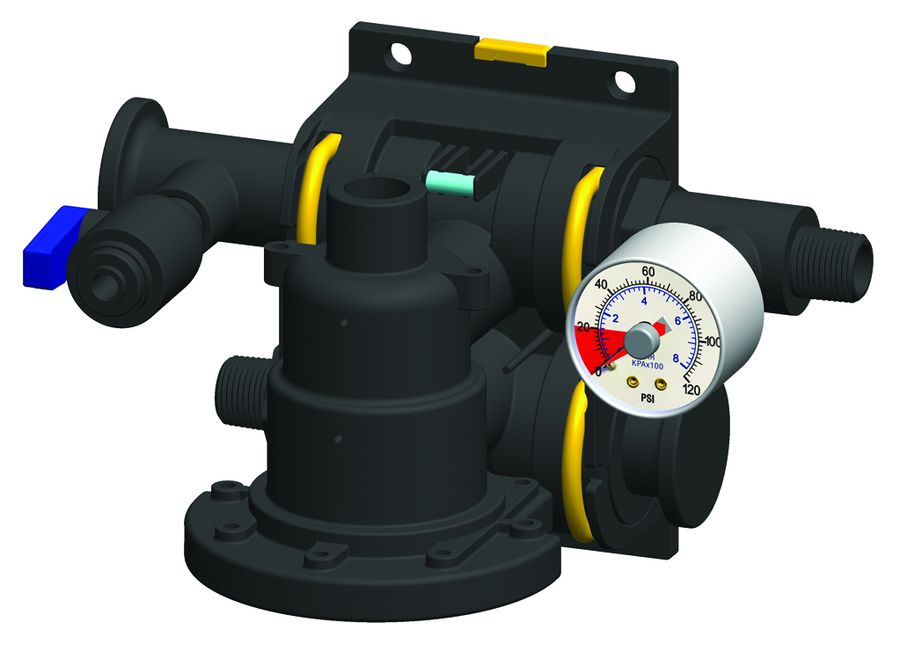

Aquamor BGX-C Single filter manifold, part number 105222
