Aquamor BGX-C  ·  105220
BGX-C Manifolds

105220

Aquamor BGX-C  ·  1+3 Stage

Application

BGX 1+3 Stage Manifold, 3/4 in NPT Inlet, Pressure Gauge, No Rinse Valve

The 105220 is a four position BGX manifold, 22.283 inches overall, with a 3/4 inch NPT inlet and 3/4 inch NPT elbow fittings. It carries a pressure gauge and no rinse valve. The full incoming stream passes through a single first stage, then divides across a three cartridge parallel bank.

One first stage, then three cartridges in parallel

BGX-C 1+3 Stage flow pathWater enters at the inlet and passes through Stage 1, a single inline cartridge -- all of the water flows through it. After Stage 1, the full flow divides at a distribution header into 3 equal branches, one for each of 3 filter cartridges arranged in parallel in Stage 2. After the Stage 2 cartridges, the 3 branches rejoin into a single outlet line.STAGE 1 INLINE, THEN 3 IN PARALLELSTAGE 1 TAKES ALL FLOW; STAGE 2 SPLITS ITINLETStage 1INLINE2A2B2COUTLET

Scroll the diagram sideways to see the full flow path.

The 1+3 arrangement runs the full incoming stream through a single first-stage cartridge, then passes it to a bank of three cartridges running side by side. The first stage sees every gallon, so it does the initial work on the whole flow. The three-cartridge bank behind it splits what comes through, which is where the combined flow rate and capacity come from.

Typical application. Sites that want a dedicated first stage on the whole stream ahead of a higher capacity parallel bank.

Part Number 105220
Series Aquamor BGX-C
Configuration 1+3 Stage
Flow Arrangement One stage, then three
Filter Heads 4
Port Size 3/4 in NPT inlet + 3/4 in NPT elbows
Rinse Valve No
Pressure Gauge Yes
Mounting Wall mount
More in the Aquamor Manifolds range
Ready to spec this manifold?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within two business days.
Contact Customer Service

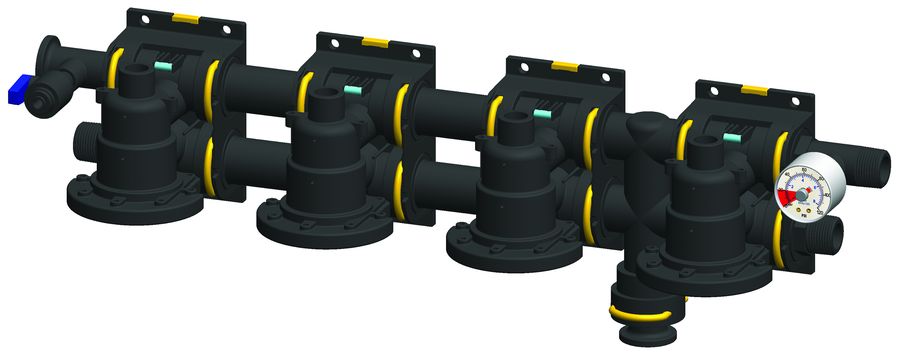

Aquamor BGX-C 1+3 Stage filter manifold, part number 105220
